The Monitoring and Telemetry service is now available for our PowerRack® and PowerModule® battery system.

This service allows all battery operating parameters to be monitored in real time.

All information is collected by WIFI, 3G/4G, or TCP-IP ethernet networks.

The service is based on a secure API-REST interface based in a secure cloud.

The main features of the service are as follows:

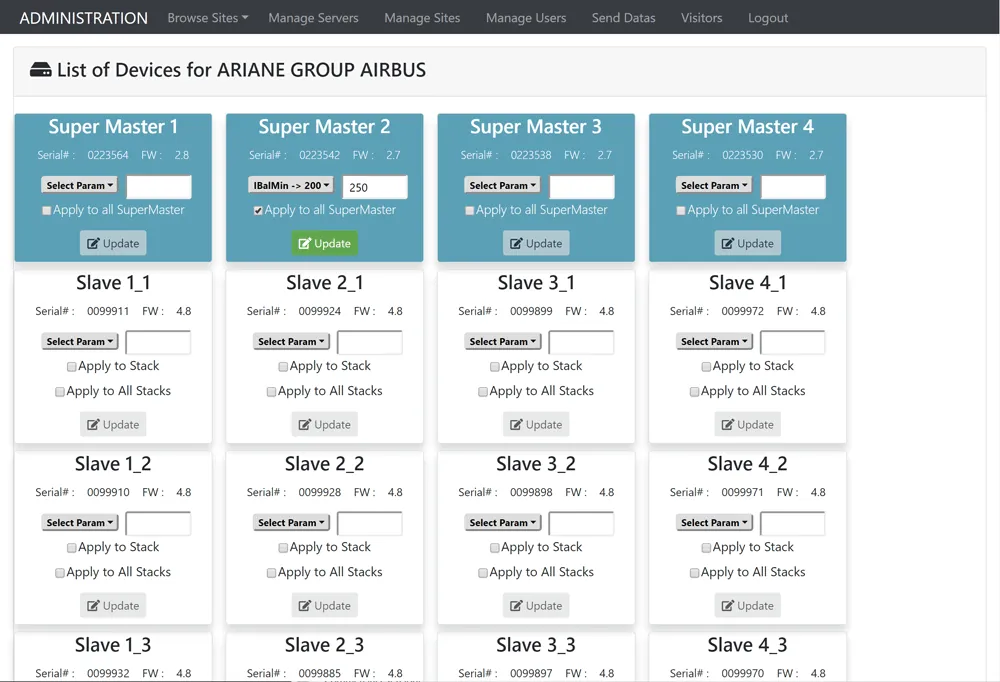

Remote configuration

• Parameter setting of all battery functions and operating thresholds (temperature range, voltage range, current range, power range, warning thresholds, maximum discharge depth, etc.)
• More than 70 accessible parameters
• Remote firmware update

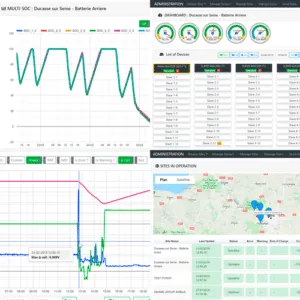

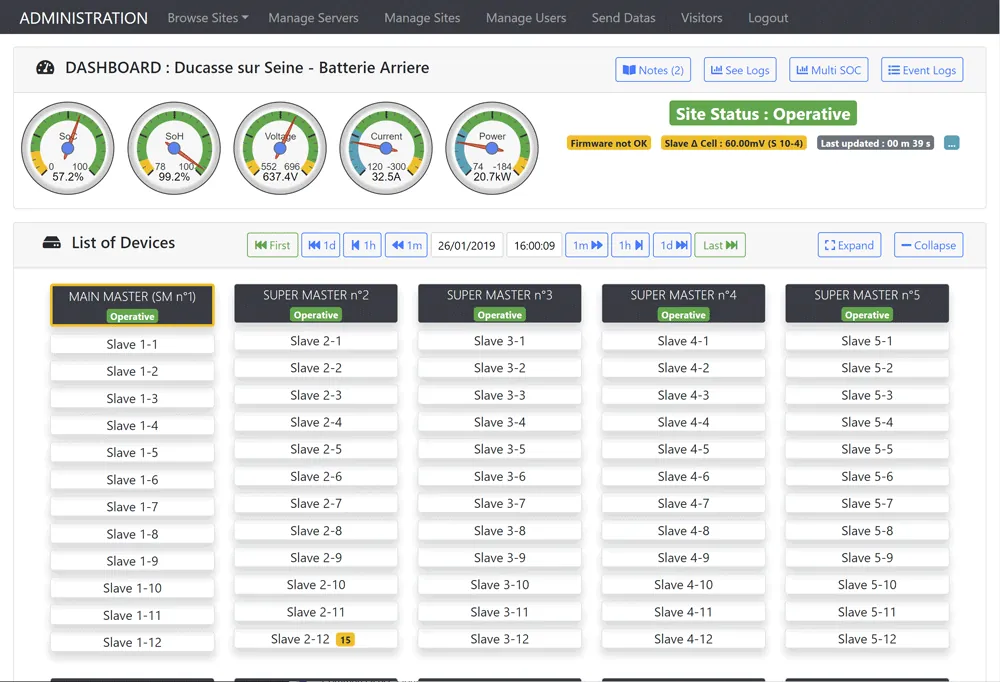

Remote monitoring

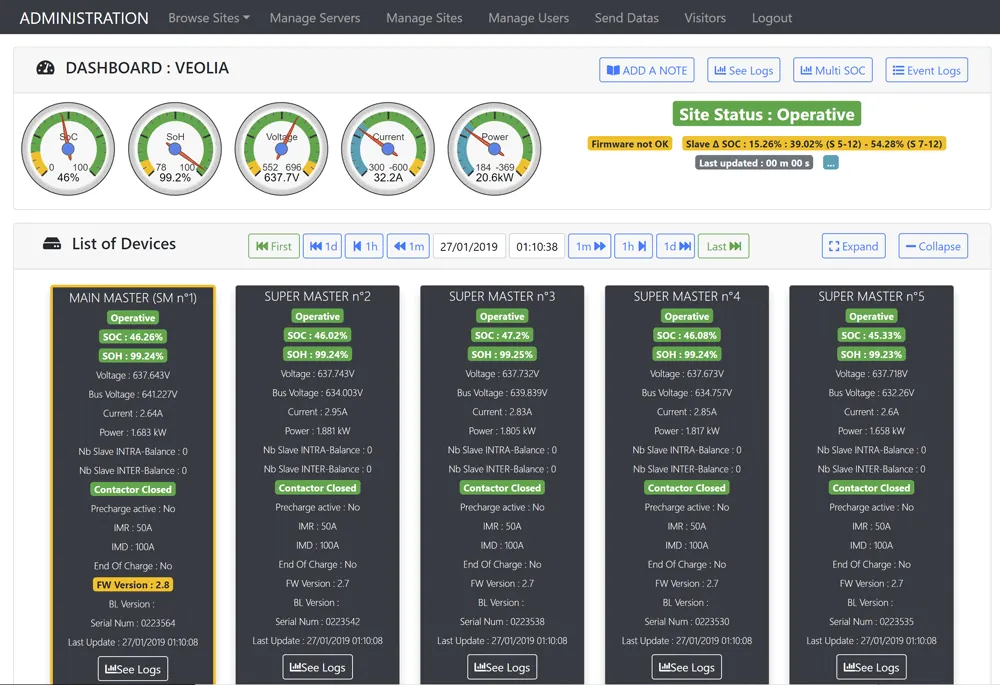

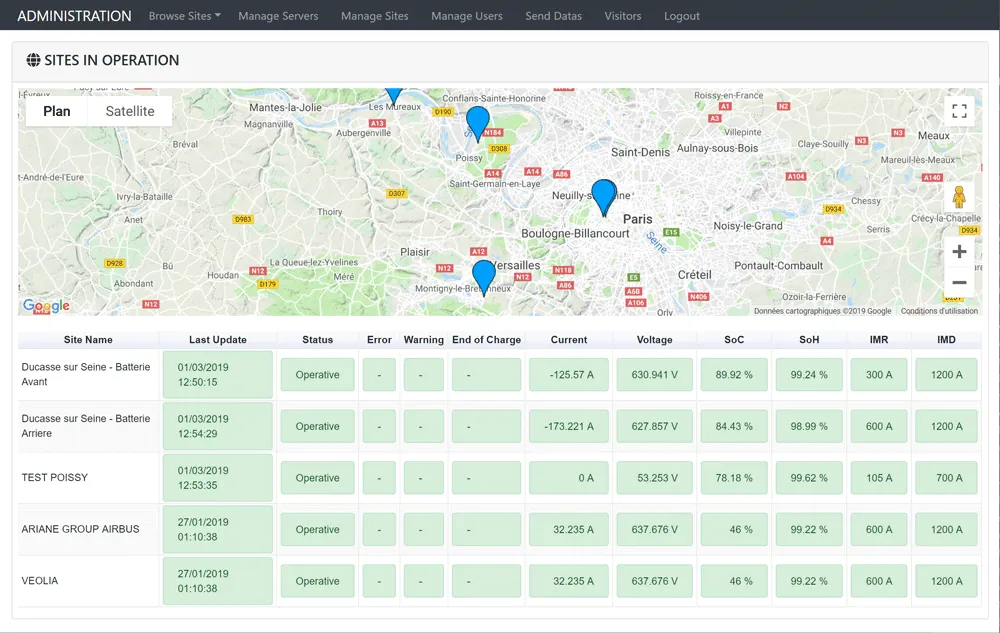

• Viewing all battery operating data
• Early phase incident detection

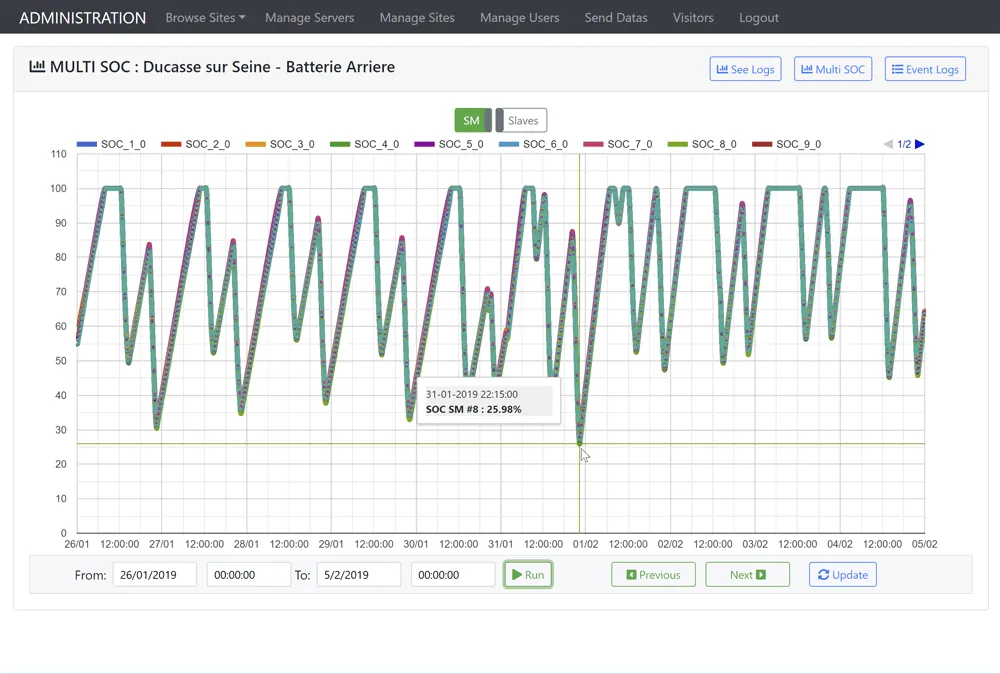

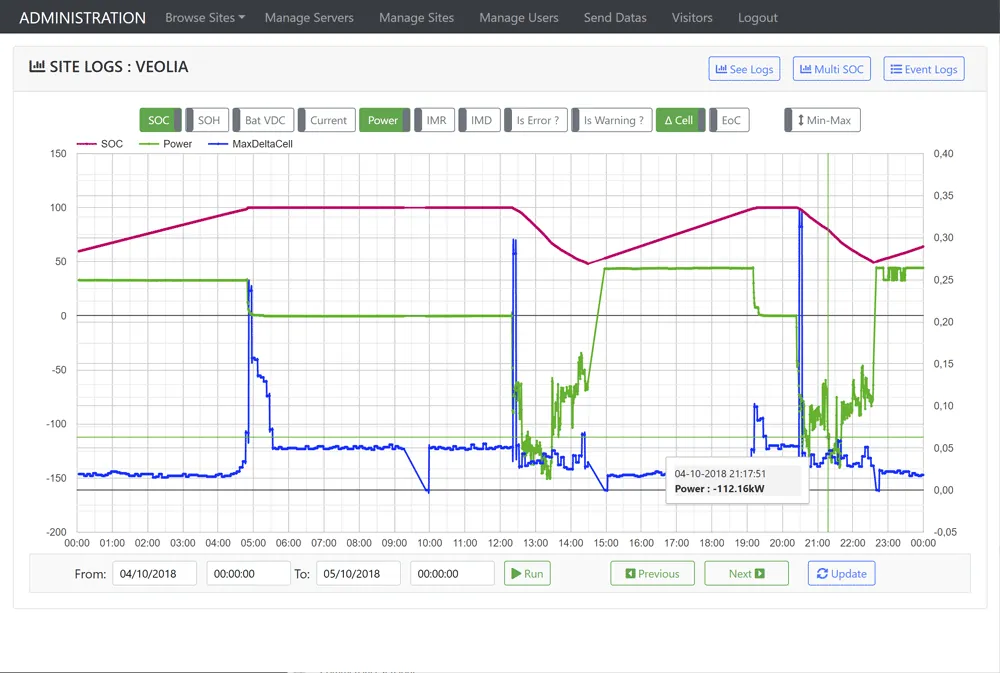

• Consultation of parameters in the form of graphs and tables
• Fleet management and preventive maintenance

Data history

• The data is compressed into 5 levels according to their age
• The average, minimum and maximum values of each parameter are kept indefinitely
• Data consultation by a “Time-Shift” function

Consultation 24-7 via WEB Interface

• The data is accessible on any Internet browser (PC or smartphone) with secure access to the platform
• The data is accessible from a database cluster and saved on a daily basis
• Management of user profiles and access rights for data consultation.
• all stored data is encrypted with strong algorithm for privacy

SMS or Email alert management

• An SMS or email alert can be configured to be triggered according to the parameters defined by the user.
• Alerts can automatically open an assistance or maintenance ticket on the ticketing tools available at the customer’s premises

The service requires a subscription that supports the provision of the “Gateway” module for the PowerRack or PowerModule, the communication package, the rental of a dedicated or shared server.

The system is now operational for the PowerRack® range.

EDIT November 2019 : It is also now operational for PowerModule® product range.
